Lubricating Rear Axle Bearings

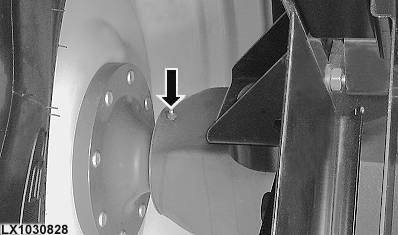

LX1030828-UN-30JAN03

Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Lubricate both bearings with six to eight strokes of grease gun. Use John Deere multi-purpose grease.
