Replacing Transmission/Hydraulic System Filter Elements

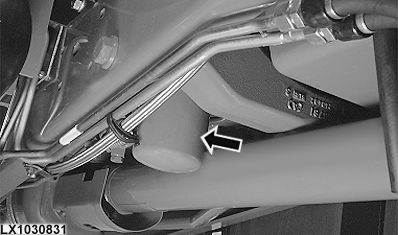

LX1030831
LX1030831-UN-30JAN03

Replace transmission/hydraulic system filter elements after the first 100 hours of operation; then replace after the first 750 hours of operation, and regularly every 750 hours thereafter.

  1. Unscrew filter elements.

  2. Coat sealing rings of new filter elements with grease and screw in filter elements.

Use original John Deere filter elements only!

OU12401,0000C7C-19-20030128
