Changing Oil In Front-Wheel Drive Axle Housing

LX1030832
LX1030832-UN-30JAN03

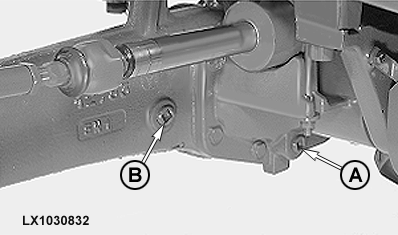

  1. Remove drain screw (A) and drain oil into a suitable container.

  2. Re-install drain screw and tighten to 150 Nm (110 lb-ft).

  3. Remove oil level/filler plug (B). Fill with fresh oil. The oil level must be up to lip of filler neck. Re-install plug.

For capacities, see “Specifications”.
