Changing Oil In Front-Wheel Drive Final Drives

LX1030833
LX1030833-UN-30JAN03

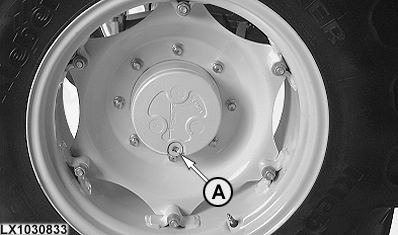

  1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

  2. Turn the wheel through 90° so that the “OIL LEVEL” mark is horizontal (see “Service - Every 250 Hours”), and add oil at the hole for the screw plug. Oil should be level with plug bore.

  3. Re-install drain screw and tighten to 150 Nm (110 lb-ft).

For capacities, see “Specifications”.
