Changing Transmission/Hydraulic Oil
LX1030834-UN-31JAN03
LX1030835-UN-31JAN03
LX1030836-UN-04FEB03
-
Start engine and operate several hydraulic functions to heat up oil.
-
Park tractor so that it is level. Lower draft links and front-mounted implements.
-
Shut off engine and remove key.
-
Apply the parking brake. (Transmission in neutral)
-

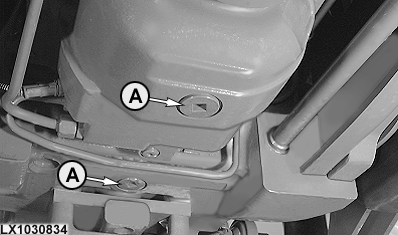

Remove drain screws (A).
-

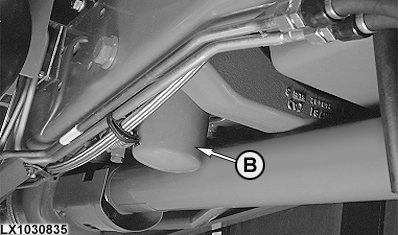

Replace transmission/hydraulic oil filter elements (B).
-

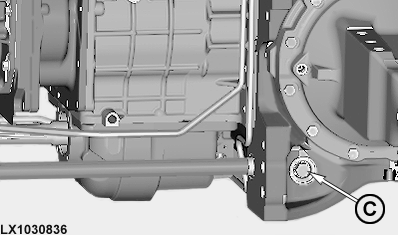

At the left side of the tractor underneath the rear axle, take out plug (C), remove the intake screen and wash it in fuel.
-
Before refilling with fresh oil, reinstall intake screen, replace seals and tighten drain screws to 50 Nm (35 lb-ft).
-
Add transmission/hydraulic oil to the transmission case.
|
Capacities |
|
|---|---|
|
PowrQuad transmission.............. |
50 liters (13.2 U.S.gal.) |
|
PowrQuad Plus transmission.............. |
51 liters (13.5 U.S.gal.) |
|
Extra with reduction gear.............. |
1 liters (0.3 U.S.gal) |
Run engine briefly and operate hydraulic functions. Shut off engine and wait 5 minutes.
Check oil level. It should be between the marks on the sight-glass. If not, correct oil level.
|
