Rate of Cylinder Operation

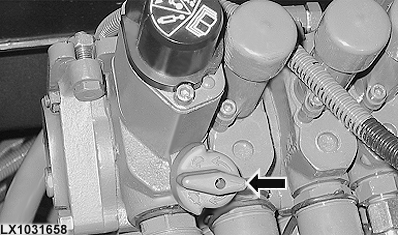

LX1031658-UN-10FEB03

The flow control valve can be used to adjust rate at which the rockshaft rises and drops (with 305 Series selective control valves only).

Full extension and retraction of a remote cylinder should require at least 1.5 seconds. Faster speeds may cause damage.
