Attaching the Pick-Up Weight

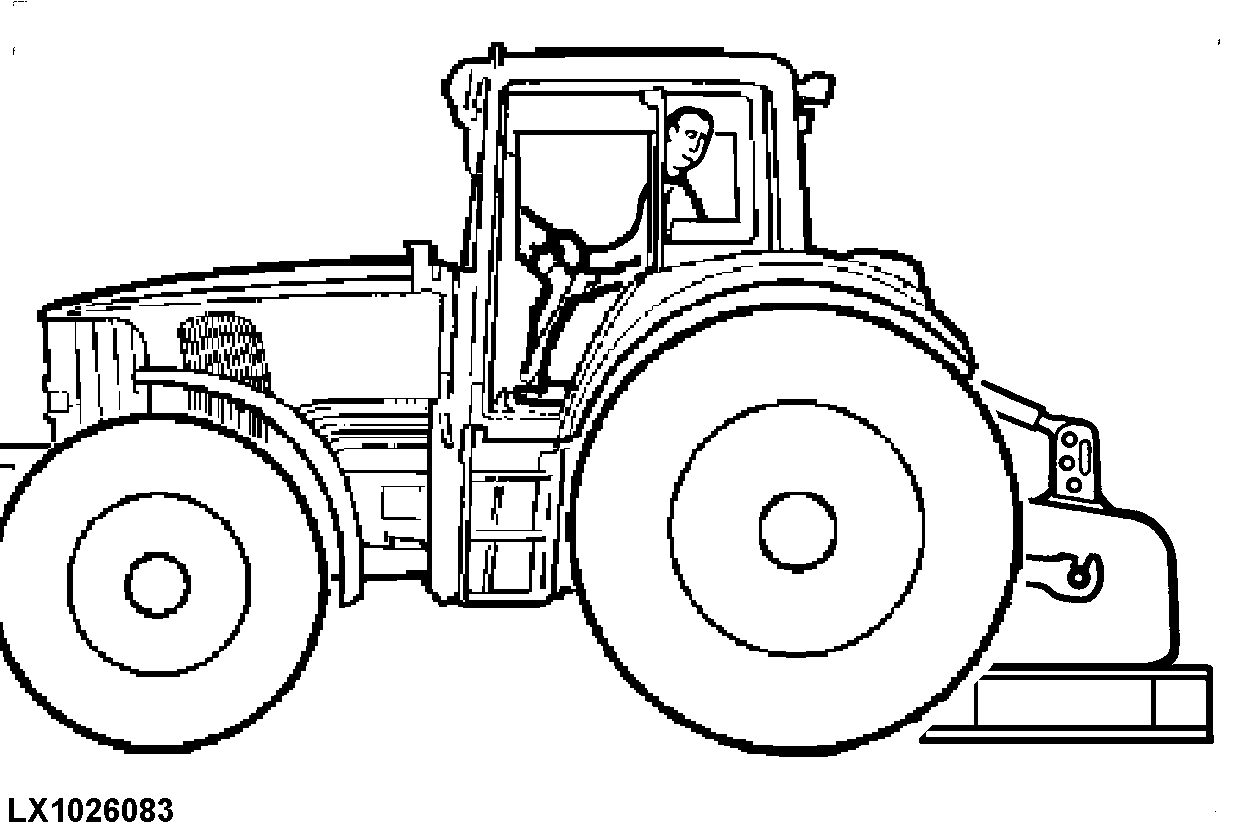

LX1026083-UN-18MAY01

Remove the adjusting rod and eye-bolts.

Put the swinging drawbar to its shortest position and swing it to the side.

Remove the height-adjustable trailer hitch (hitch only).

Install the center link bracket on the pick-up weight.

Reverse the tractor to the pick-up weight and proceed as for any other implement.

On tractors with extra-large tires, it may be necessary to adjust the lift links to their maximum length.

Make sure that the hooks on the draft links are closed properly.

Install all retaining pins.

Steering may be adversely affected unless there is sufficient weight at the front end of the tractor (e.g. a front loader).

Remember to engage the center link.
