Pick-Up Hitch

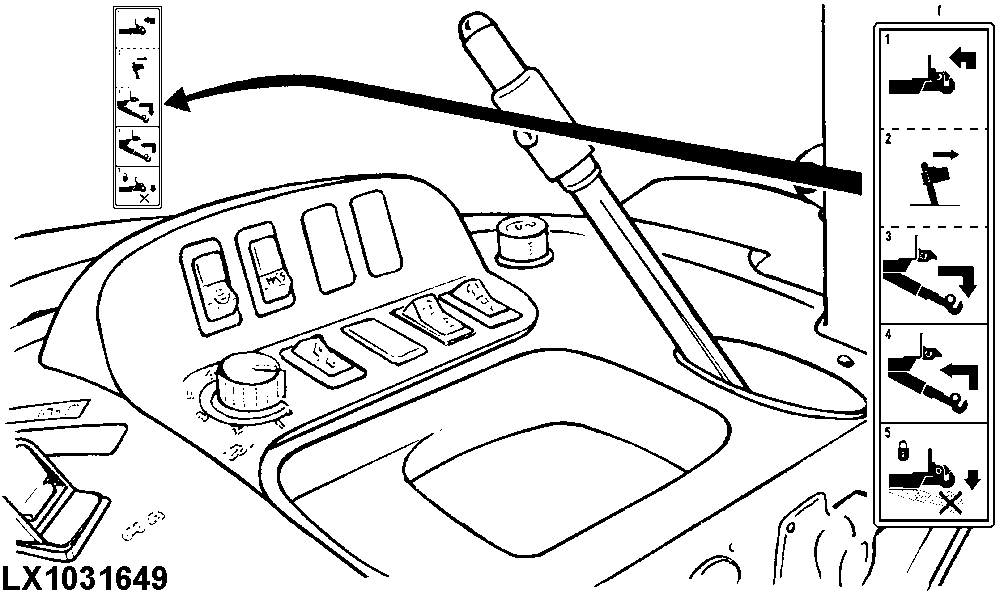

LX1031649-UN-03FEB03

Raise draft links to engage hitch hook in trailer towing eye, then continue to raise the hitch fully.

Retract hitch hook fully by means of selective control valve until it is completely locked (the control lever moves to its home position).

Lower the draft links.

Check that the hitch is completely locked. It will not lower when the draft links are lowered and not extend when the selective control valve is operated.

Before driving away, make sure the hitch is fully raised and locked in both horizontal and vertical positions.

NEVER put your hand in the opening of the pick-up while the pick-up is lowered! Risk of injury!
