Vehicle controls

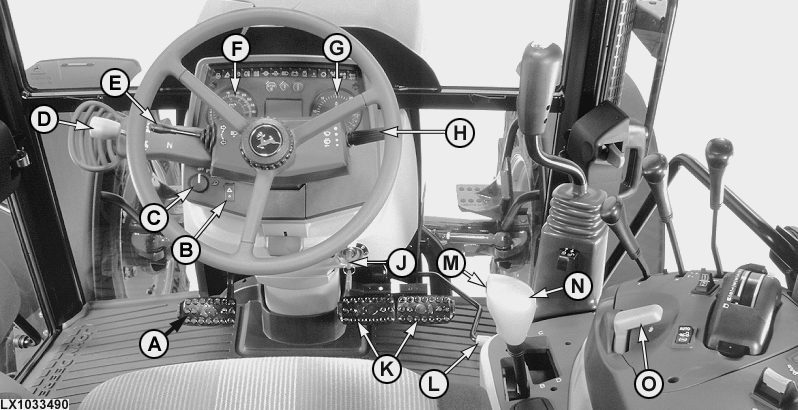

LX1033490-UN-18NOV03

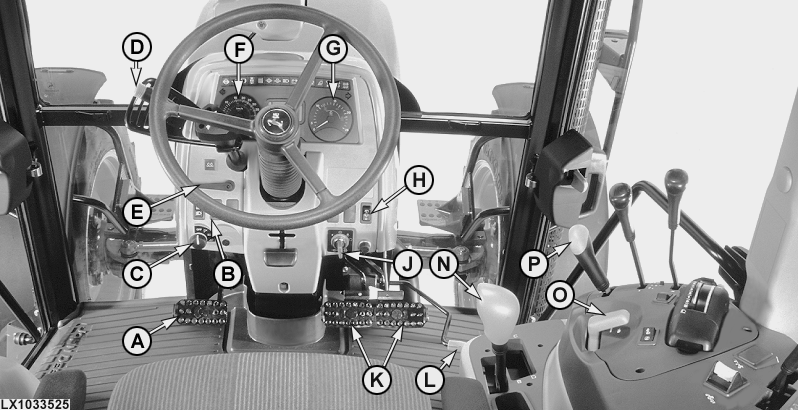

LX1033525-UN-19NOV03

A - Clutch Pedal

B - Hazard warning switch

C - Light switches

D - Forward/neutral/reverse lever

E - Turn signal lever

F - Speedometer, km/h

G - Rev counter, rpm

H - Windshield wiper switch

J - Main (key) switch

K - Brake pedals

L - Accelerator pedal

M - Gearshift buttons (PowrQuad Plus transmission)

N - Range Shift Lever

O - Hand throttle

P - Gearshift lever (PowrQuad Plus transmission)
