Windshield Wiper and Washer System

Tractors With PowrQuad™ Transmission

LX1033495-UN-18NOV03

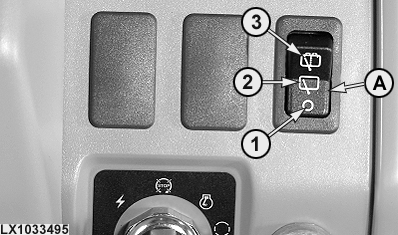

Windshield wiper switch (A) has three positions:

• 1 = OFF
• 2 = Wiper on
• 3 = Washer on

Tractors with PowrQuad Plus transmission

LX1033496-UN-18NOV03

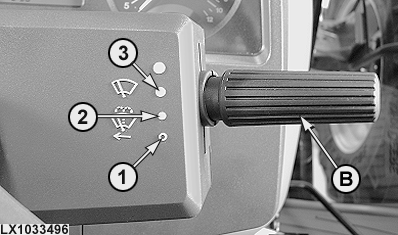

Windshield wiper switch (B) has three positions:

• 1 = OFF
• 2 = Intermittent wipe
• 3 = Fixed speed

The windshield washer system is operated by pushing switch (B) towards the steering wheel.

Rear window wiper (optional)

LX1033497-UN-18NOV03

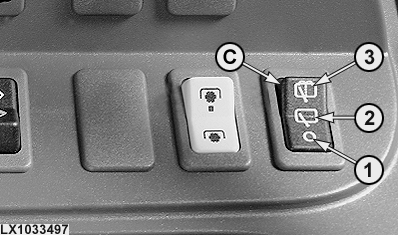

Rear window wiper switch (C) has three positions:

• 1 = OFF
• 2 = Wiper on
• 3 = Washer on

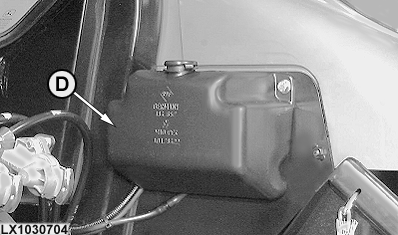

Reservoir for windshield washer system

LX1030704-UN-10JAN03

Add a suitable anti-freeze solution to water in reservoir (D) if temperature is liable to drop below freezing point.
