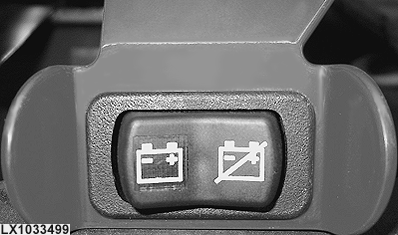

Battery Cut-Off Switch (If Equipped)

LX1033499-UN-24NOV03

This switch allows the battery to be cut off from the tractor's electrical system. To do this, main switch must be in OFF-position.

Never switch off the power at the battery cut-off switch while the engine is running! This may damage the tractor's electronics, and the voltage peaks that will occur at the alternator may be dangerous.

During a long storage period always turn battery cut-off switch to the OFF-position (tractor electrical system disconnected from battery power supply). Battery will be discharged if the tractor is not used and the battery cut-off switch is in the ON-position
