Reversing Rear PTO Shafts

LX1033508
LX1033508-UN-19NOV03

LX012500
LX012500-UN-29JAN96

LX1033509
LX1033509-UN-19NOV03

LX1033510
LX1033510-UN-19NOV03

One end of the 540 rpm stub shaft has 6 splines for operating at 540 rpm, and the other end has 21 splines for operating at 1000 rpm. Clean stub shaft thoroughly before installing.

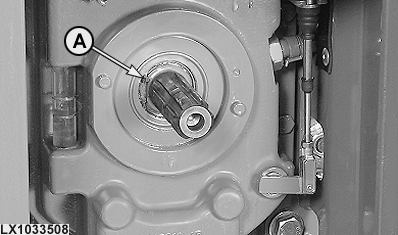

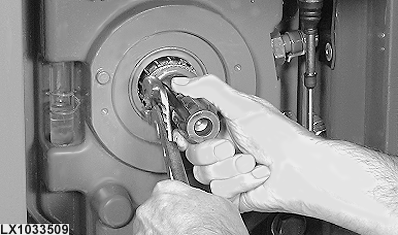

  1. Remove snap ring (A) and pull out stub shaft.

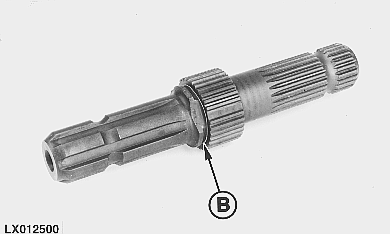

  2. Clean stub shaft thoroughly and coat it with grease. Groove (B) facilitates installation of snap ring.

  3. Insert stub shaft in PTO housing until snap ring (A) fits into the groove.

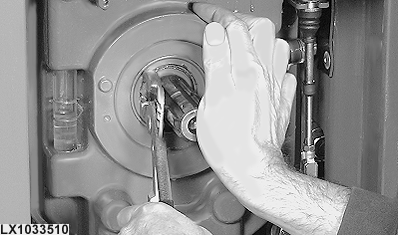

  4. Install snap ring.

A flattened area on the stub shaft facilitates removal and installation of snap ring.
