Checking and Draining the Compressed Air Trailer Brake System

LX1033501
LX1033501-UN-18NOV03

With the engine shut off and the pressure in the tank at 800 kPa (8 bar; 116 psi), no drop in pressure should be registered over a period of three minutes. If a drop in pressure is detected, see your John Deere dealer.

LX1030808
LX1030808-UN-30JAN03

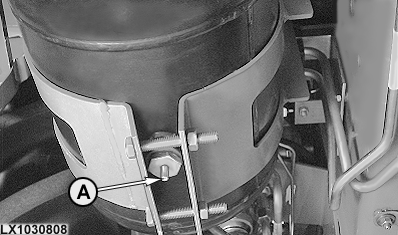

Pull lever (A) to drain water from the air tank.

OU12401,0000FF4-19-20031201
