Engaging the differential lock

LX1033533-UN-20NOV03

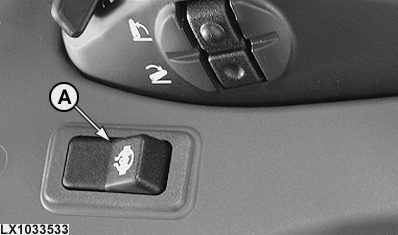

Differential lock switch, tractors without HMS II

LX1030792-UN-29JAN03

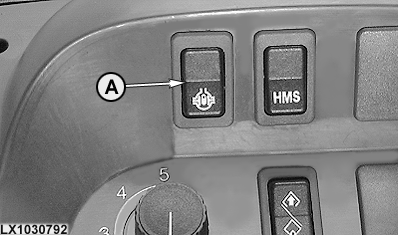

Differential lock switch, tractors with HMS II

Do not attempt to turn the tractor with the differential lock engaged.

If wheel slip varies greatly between rear wheels, engage differential lock by means of switch (A). To disengage the differential lock, depress the brake pedal.

If tractor speed exceeds 12 km/h (7.5 mph) with the differential lock engaged, the differential lock switches itself off automatically.

When tractor speed drops below 12 km/h (7.5 mph) again, actuation of the differential lock must be carried out manually by the driver.
