Engaging Front Wheel Drive

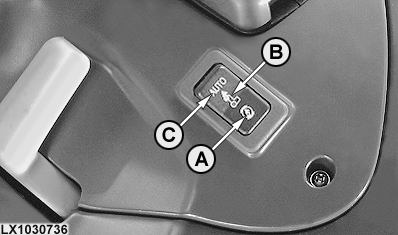

LX1030736-UN-13JAN03

LX1030737-UN-14JAN03

A - Front wheel drive disengaged

B - Front wheel drive engaged

C - Automatic position

D - Indicator light comes on when FWD is engaged

Front-wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

Disengage front-wheel drive before driving at high speed on public roads.

When the brakes are applied, front-wheel drive cuts in automatically regardless of the position selected at the front-wheel drive switch. The front-wheel drive indicator light is on.

With Headland Management System HMS (if equipped):

Besides the "on" and "off" functions, this system also has an automatic position. When "automatic" is selected, front-wheel drive switches itself off automatically whenever tractor speed exceeds 23 km/h (14.3 mph).

When tractor speed drops below 21 km/h (13 mph), front-wheel drive switches itself on automatically again.
