Cleaning the Cab Air Filter

LX1033518-UN-19NOV03

LX1033519-UN-19NOV03

Every time the engine air cleaner is serviced, also clean the two cab air filters (one of each on either side of the cab).

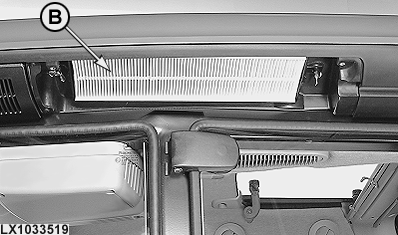

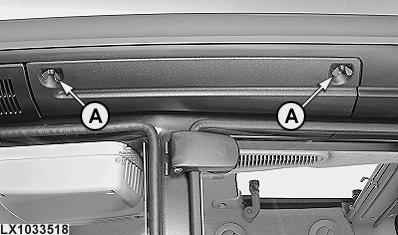

Take out screws (A) and remove cover (B). Remove filter (B).

With the nozzle on the clean side, use compressed air to blow the dust out of the filter elements.

Replace cab air filters together with engine air cleaner element.

Recirculating filter (tractors with air-conditioning system)

LX1033520-UN-19NOV03

LX1033521-UN-19NOV03

LX1033522-UN-19NOV03

On tractors with air conditioning system also clean the two recirculating air filters (one of each on either side of the cab).

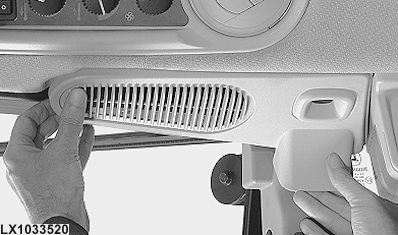

Pull cover on outer side down and remove.

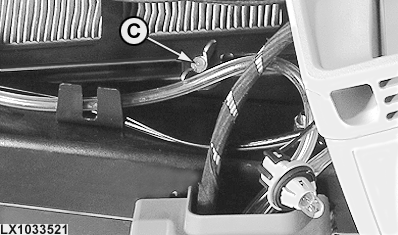

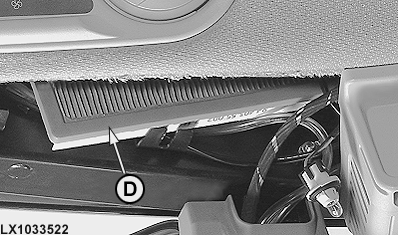

Loosen attaching screws (C) and remove bracket. Remove filter (D).

With the nozzle on the clean side, use compressed air to blow the dust out of the filter elements.

Replace recirculating air filters together with engine air cleaner element.
