Light Switches (Tractors with PowrQuad Transmission)

LX1033526-UN-19NOV03

L102655-UN-15AUG94

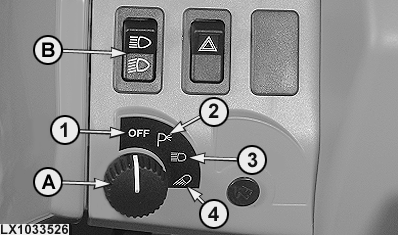

Light switch (A) can be set to the following positions:

• 1-Light switch in "off" position
• 2-Parking lights "on"
• 3-Headlights "on"
• 4-Headlights "on" and worklights can be switched on

Switch headlights to “low beam” or “high beam” position by means of switch (B).

• Switch down = low beam
• Switch up = high beam

Indicator light (C) will glow when headlight switch is in "high beam" position.
