Switches for Turn Signal Lights and Horn (Tractors with PowrQuad Plus Transmission)

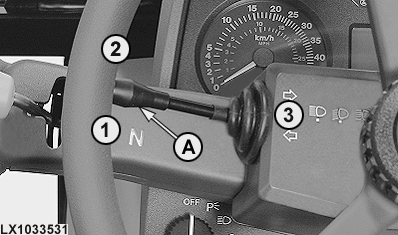

LX1033531-UN-20NOV03

Positions of stalk switch (A):

• 1 = Turn signal, left-hand turn
• 2 = Turn signal, right-hand turn
• 3 = Horn (push towards steering column)

LX1033532-UN-20NOV03

Push stalk switch to left or right and return it immediately to middle:

Left or right turn signal continues to flash in relation to time and tractor speed; it switches itself off automatically.

To cancel the indicator before it switches itself off automatically, push the stalk switch once again in the desired direction of turn, and then return it to the middle.
