Replace Primary Fuel Filter

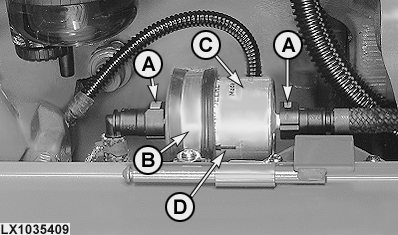

LX1035409
LX1035409-UN-06DEC04

A - Fuel lines

B - Clamp

C - Primary fuel filter

D - Arrow for direction of flow

  1. Remove fuel lines (A).

  2. Loosen clamp (B) and remove primary fuel filter (C).

  3. Install filter element. Arrow (D) must be pointing forward.

  4. Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 20 seconds.

OU12401,0001152-19-20041111
