Change Engine Oil

LX1030824-UN-30JAN03

LX1035413-UN-06DEC04

FD000047-UN-13MAR96

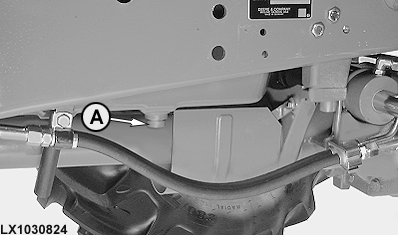

A - Drain screw

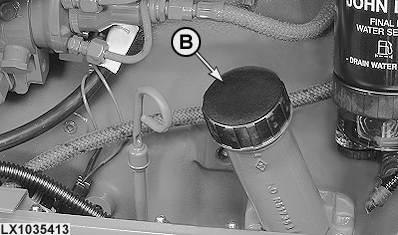

B - Filler neck

Drain oil with engine shut off, but with engine oil still warm.

1. Remove drain screw (A).

2. While crankcase is draining, replace filter element.

3. Reinstall drain screw and tighten to 50 Nm (37 lb-ft). Use a new seal ring.

4. Fill crankcase with fresh oil of proper viscosity at filler neck (B). See section "Fuel, Lubricants, Hydraulic Oil and Coolant". Capacity is approx. 13 liters (3.4 U.S.gal.).

5. Wait for 15 minutes then check the oil level. Oil should be up to the "XXX" marks on the dipstick. Add oil as needed.

6. Run engine for a short time. Shut off engine and remove the key. Check for leaks at filter base and drain screw.

Use oil with a viscosity suitable for the relevant season.

Carry out first oil change after first 100 hours of operation. Engine oil must be changed at least once a year.
