Replace Fuel Filter

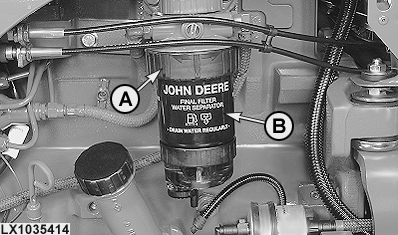

LX1035414
LX1035414-UN-06DEC04

A - Retaining ring

B - Filter

  1. Unfasten filter retaining ring (A) and remove filter (B). Seal old filter with cover of the new one.

  2. Remove water separator and install it on new filter.

  3. Attach new filter. The marks on the filter must be aligned with those on the housing.

  4. Tighten retaining ring (A) until it clicks into place.

  5. Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 20 seconds.
