Fuses

The two main fuses, the fuse for the electrical starting aid and the indicator light fuse are located on the r.h. side of the engine.


Replace main fuses

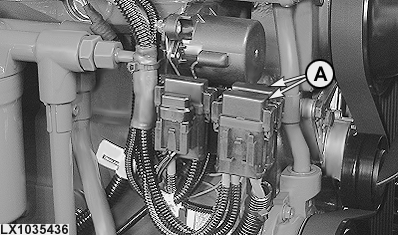

LX1035436
LX1035436-UN-13DEC04

F13 – 70 amps, battery circuit (main power supply)

F14 – 70 amps, battery circuit (main power supply)

To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

  1. Remove fuse covers (A).

  2. Replace the fuses.


Replace electrical starting aid fuse

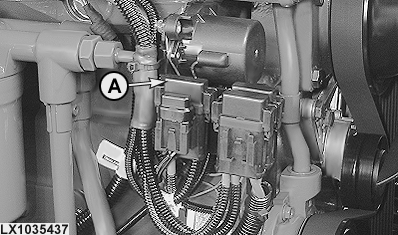

LX1035437
LX1035437-UN-13DEC04

F09 — 70 amps, heater element of electrical starting aid

To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

  1. Remove fuse cover (A).

  2. Replace the fuse.


Replace fuse for indicator light of electrical starting aid

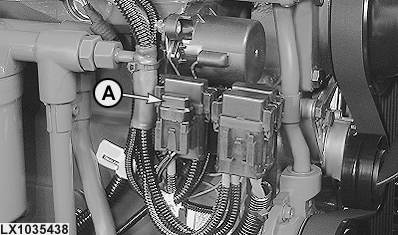

LX1035438
LX1035438-UN-13DEC04

F11 — 10 amps, indicator light of electrical starting aid

To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

  1. Remove fuse cover (A).

  2. Replace the fuse.
