Tow Hitch (Piton Fix)

LX1035439-UN-13DEC04

Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see ”Service / Every 500 Hours”).

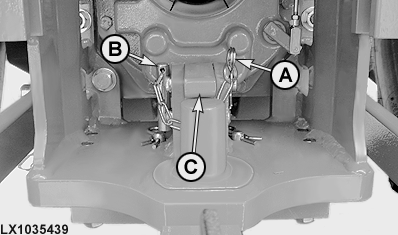

To attach an implement remove locking pin (A), pin (B) and bracket (C). Once the implement has been attached, reinstall bracket (C) and pin (B) and secure it with locking pin (A).
