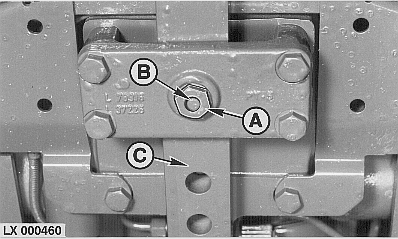

Adjustment of Drawbar

LX000460-UN-09AUG94

A - Hex Plug

B - Locking pin

C - Drawbar

The drawbar can be adjusted to three different lengths:

250 mm (9.8 in.), 350 mm (13.8 in.) and 400 mm (15.7 in.).

These lengths determine the distance from the end of the PTO shaft to the attachment point of the drawbar.

1. Remove hex plug (A).
2. Remove locking pin (B).
3. Adjust drawbar (C) and reinstall locking pin.
4. Tighten hex plug (A) to 310 Nm (225 lb-ft).
