Multi-Function Lever

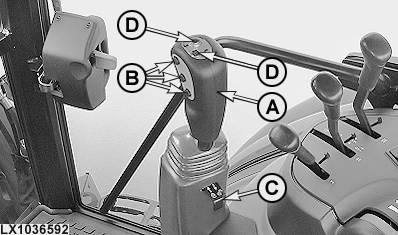

LX1036592-UN-28JUL05

A - Multi-function lever

B - Buttons for additional functions

C - Transport lock slide control

D - Upshift/downshift buttons

Multi-function lever (A) permits two SCVs to be operated at the same time. Buttons (B) allow additional functions to be performed.

The slide control (C) can be used to lock the lever.

The multi-function lever must be locked when the tractor is driven on proper roads.

If upshift/downshift buttons (D) are equipped, they allow the gears at the transmission to be shifted.
