Checking Front Wheel Toe-In

LX1037577
LX1037577-UN-10MAR06

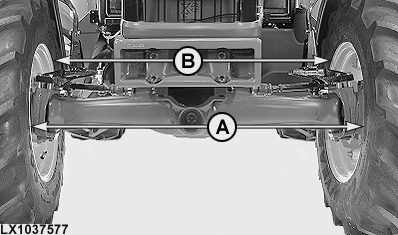

At hub height, measure front and rear of front wheels from rim flange to rim flange.

  1. Measure dimension (A).

  2. Turn the front wheels through half a turn.

  3. Measure dimension (B) at the same point where dimension (A) was measured.

Dimension (A) must not differ from dimension (B) by more than 1.5 mm (0.06 in.).
