Adjusting Toe-In

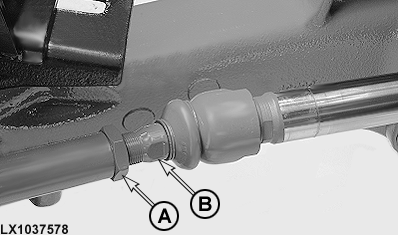

LX1037578-UN-10MAR06
Slacken locknut (A) and screw the threaded rod (B) in or out. Retighten the locknut to 120 Nm (90 lb-ft).
|
OU12401,00013A9-19-20060307 |
Adjusting Toe-In
Slacken locknut (A) and screw the threaded rod (B) in or out. Retighten the locknut to 120 Nm (90 lb-ft).
|
