Adjusting the Fixed Fenders (New Version)

The fenders may be adjusted individually. Several adjusting positions are possible. Tilt, width and height of the fenders can be adjusted depending on tire size, tread width and steering angle. To do so, proceed as follows:

1.
   LX1037579-UN-10MAR06


   LX1037580-UN-10MAR06

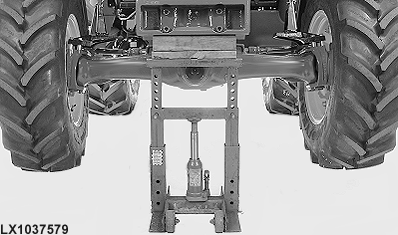

   Raise front of tractor so that the front wheel drive axle can pivot freely.

---




2. Turn steering wheel in both directions and pivot the axle to determine the most suitable fender mounting position.

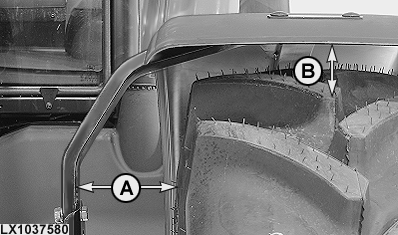

3. Adjust fender position so that the minimum clearances (see illustration) are met. There must not be any contact with tractor components.

   A = 40 mm (1.57 in.), B = 60 mm (2.36 in.)

4.
   LX1037546-UN-21OCT05

   Also adjust the steering angle to make sure that neither the wheel nor the fender come into contact with tractor components.

---

Tighten the screws to the following torque values:

LX1037581-UN-10MAR06

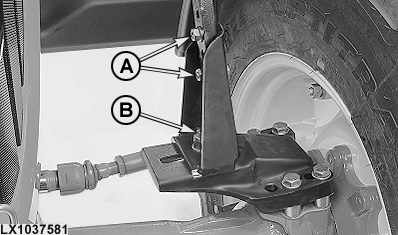

A - Cap screws, fender support

B - Cap screw, base

Screws (A)..............	150 Nm (110 lb-ft)
Screw (B)..............	200 Nm (150 lb-ft)
