Shifting the PowrQuad Transmission

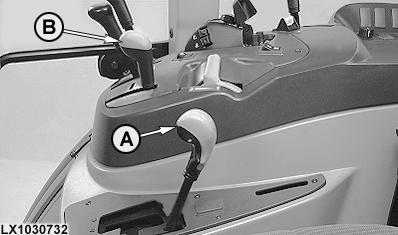

LX1030732-UN-13JAN03

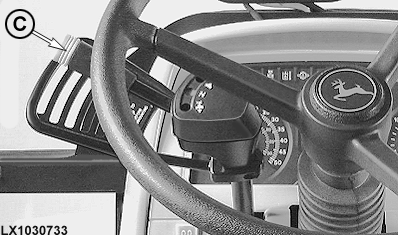

LX1030733-UN-13JAN03

A - Range shift lever

B - Gear shift lever

C - Reverse drive lever

Gears are shifted by means of range shift lever (A), gear shift lever (B) and reverse drive lever (C). Slightly lift the reverse drive lever (C) to move it out of the neutral position.

After the engine has been started wait for 5 seconds before moving the reverse drive lever (C) out of neutral position.

The clutch pedal must be depressed to change the ranges. There is no need to depress the clutch pedal to shift gears or to change the direction of travel.

If the reverse drive lever is actuated when the engine is running and a range is selected, the tractor will start to move.

Engage park lock (if equipped) only when the tractor is stationary.

Optimum gear-shifting for driving under load (transport):

1. Select a range suitable for driving away under load.
2. Engage the first gear.
3. Drive away and change up through the ranges until the top range is reached.
4. Change up through the gears.
