Adjustable Drawbar

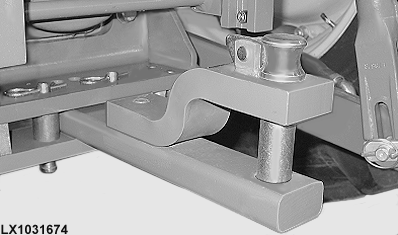

LX1031674-UN-19FEB03

The drawbar is used to pull drawn equipment of all types, particularly PTO-driven implements.

The drawbar hitch is located so as to increase the rear axle load and at the same time slightly reduce load on the front axle.

Besides having a variable swinging range, the drawbar can also be adjusted lengthwise.

Maximum permissible static vertical loads and towable drawbar loads are stated in the "Specifications" section.

Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see ”Service / Every 500 Hours”).

Towing on public roads with the swinging drawbar set to one side is not permitted!
