Pick-Up Hitch

LX1031664-UN-17FEB03

LX1031665-UN-17FEB03

LX1031666-UN-17FEB03

LX1031667-UN-17FEB03

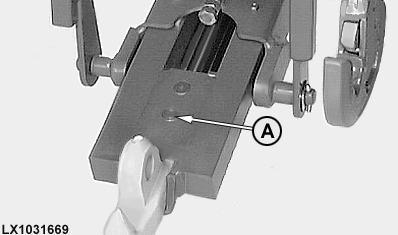

1 - Hitch in position for attaching trailer

2 - Hitch in stored position

This type of hitch can be operated via the rockshaft and one selective control valve.

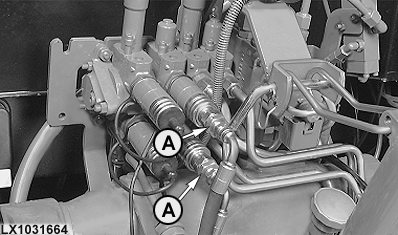

1. Connect hydraulic hoses (A) to the quick-couplers.

2. Raise draft links to maximum height and use SCV to retract the hitch hook fully.

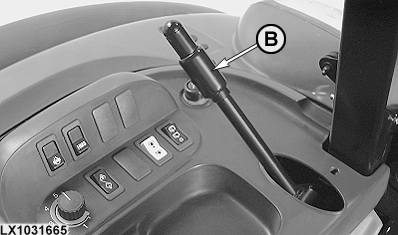

3. Pull release lever (B) and hold it until the hitch hook has moved from the stored position (lever remains in "open" position).

4. Extend the hitch hook fully by actuating the selective control valve.

5. Lower draft links/hitch hook to desired height.

6. Raise draft links to engage hitch hook in trailer towing eye, then continue to raise the hitch fully.

7. Retract the hitch hook fully by means of selective control valve until it is fully locked (lever (B) returns to its starting position).

8. Lower the draft links.

9. Check that the hitch is locked correctly. It will not lower when the draft links are lowered and not extend when the selective control valve is operated.

If the release lever is hard to operate or locking the hitch hook is not performed automatically (step 3 or step 7 above), have your John Deere dealer check the setting of the lift links or of the pick-up hitch hook.

LX1031668-UN-17FEB03

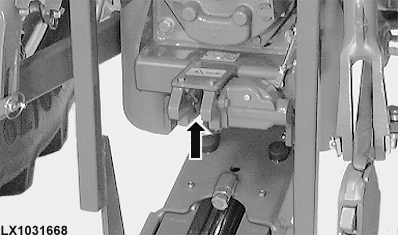

With the hitch lowered, NEVER reach into the receiver opening (see arrow). Risk of injury!

Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see ”Service / Every 500 Hours”).

Maximum permissible static vertical loads and towable drawbar loads are stated in the "Specifications" section.
