Fan and Air Louvers

LX1035416-UN-06DEC04

LX1035417-UN-06DEC04

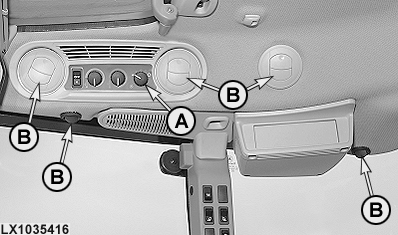

A - Fan speed switch

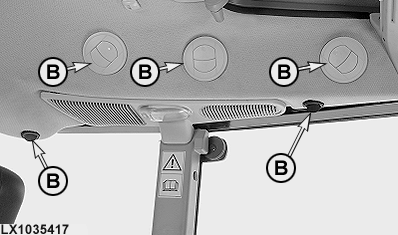

B - Air louvers

The four fan speeds are controlled by switch (A). The general direction of the airflow can be altered by means of air louvers (B).
