After the First 100 Hours of Operation

Change engine oil. See ”Service / Every 500 Hours”.

Replace engine oil filter. See ”Service / Every 500 Hours”.

Check air intake hoses for leaks. See ”Service / Every 500 Hours”.

Change transmission/hydraulic oil filter. See ”Service / Every 750 Hours”.

Change oil in front-wheel drive (axle housing and final drives). See ”Service / Every 1500 Hours”.

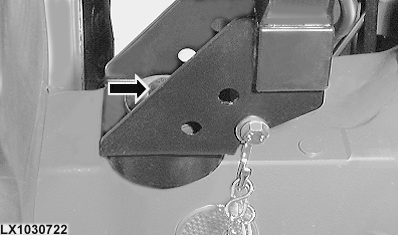

Torque for cab mounting screws

LX1030722-UN-27JAN03

Check all cab mounting screws for tightness.

The specified torque is 220 Nm (160 lb-ft).

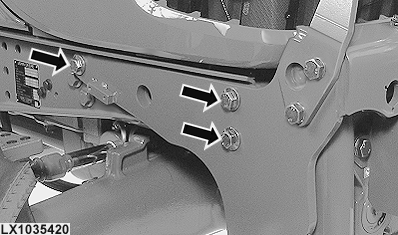

Torque for screws of mounting frame for front three-point hitch

LX1035420-UN-07DEC04

Check screws of mounting frame for three-point hitch for tightness.

The specified torque is 550 Nm (405 lb-ft).

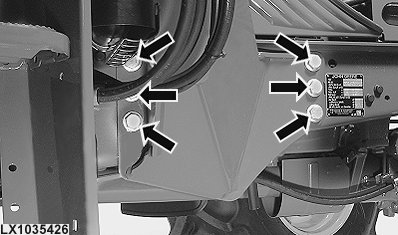

Torque for screws of mounting frame for front loader

LX1035426-UN-10DEC04

Check screws of mounting frame for front loader for tightness.

The specified torque is 550 Nm (405 lb-ft).

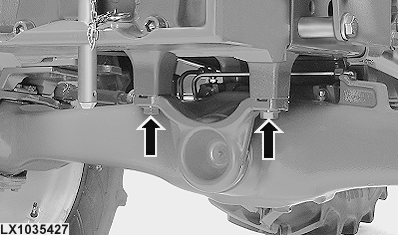

Torque for screws of front axle mounting

LX1035427-UN-10DEC04

Check four screws of front axle mounting for tightness.

The specified torque is 610 Nm (450 lb-ft).

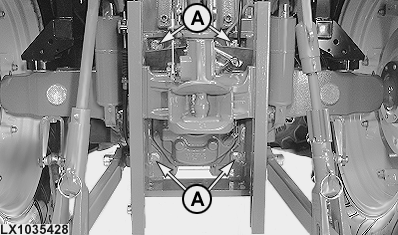

Torque for screws/nuts of trailer hitch

LX1035428-UN-10DEC04

A - Screws

Check screws (A) of trailer hitch for tightness.

The specified torque is 310 Nm (230 lb-ft).

LX1035429-UN-10DEC04

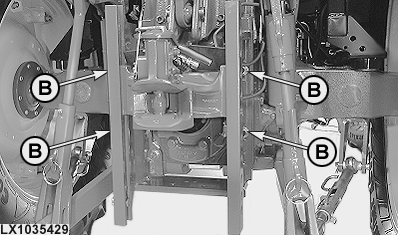

B - Nuts

The specified torque is 265 Nm (195 lb-ft).

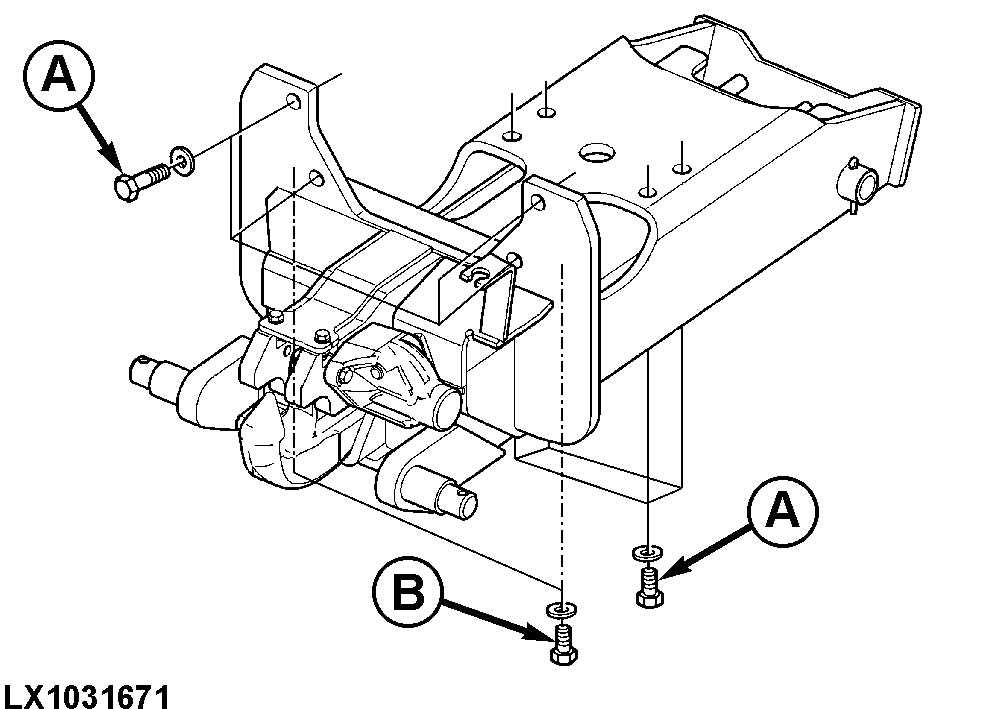

Torque for screws of pick-up hitch

LX1031671-UN-17FEB03

A - Cap screws

B - Hex. socket screws

Check torques of mounting screws.

Tighten cap screws (A) to 310 Nm (230 lb-ft).

Tighten hex socket screws (B; behind the front plate) to 280 Nm (208 lb-ft).

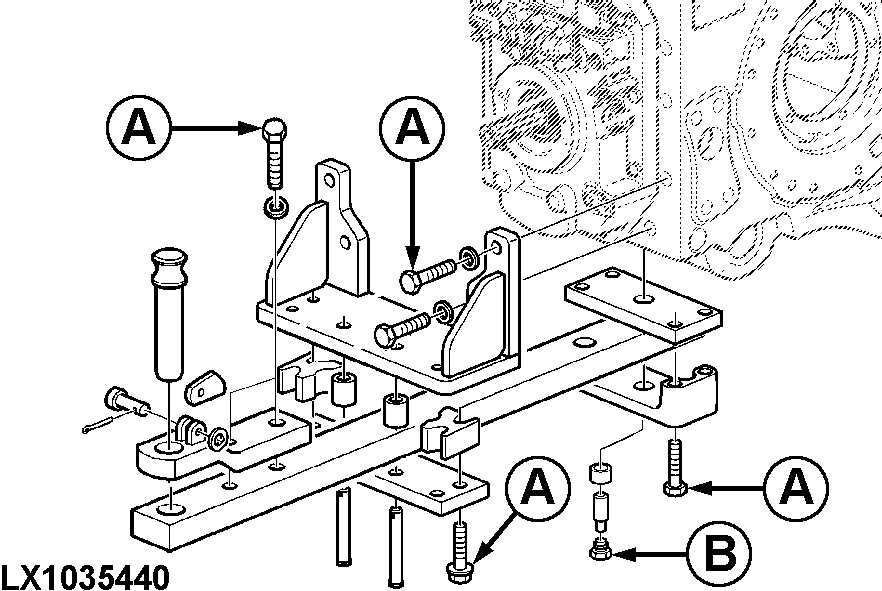

Torque for screws of drawbar

LX1035440-UN-18JAN05

A - Cap screws

B - Plug

Check torques of mounting screws and plug.

Tighten cap screws (A) and plug (B) to 310 Nm (230 lb-ft).
