Operating Power Take-Offs

LX1030781
LX1030781-UN-27JAN03

LX1030782
LX1030782-UN-24JAN03

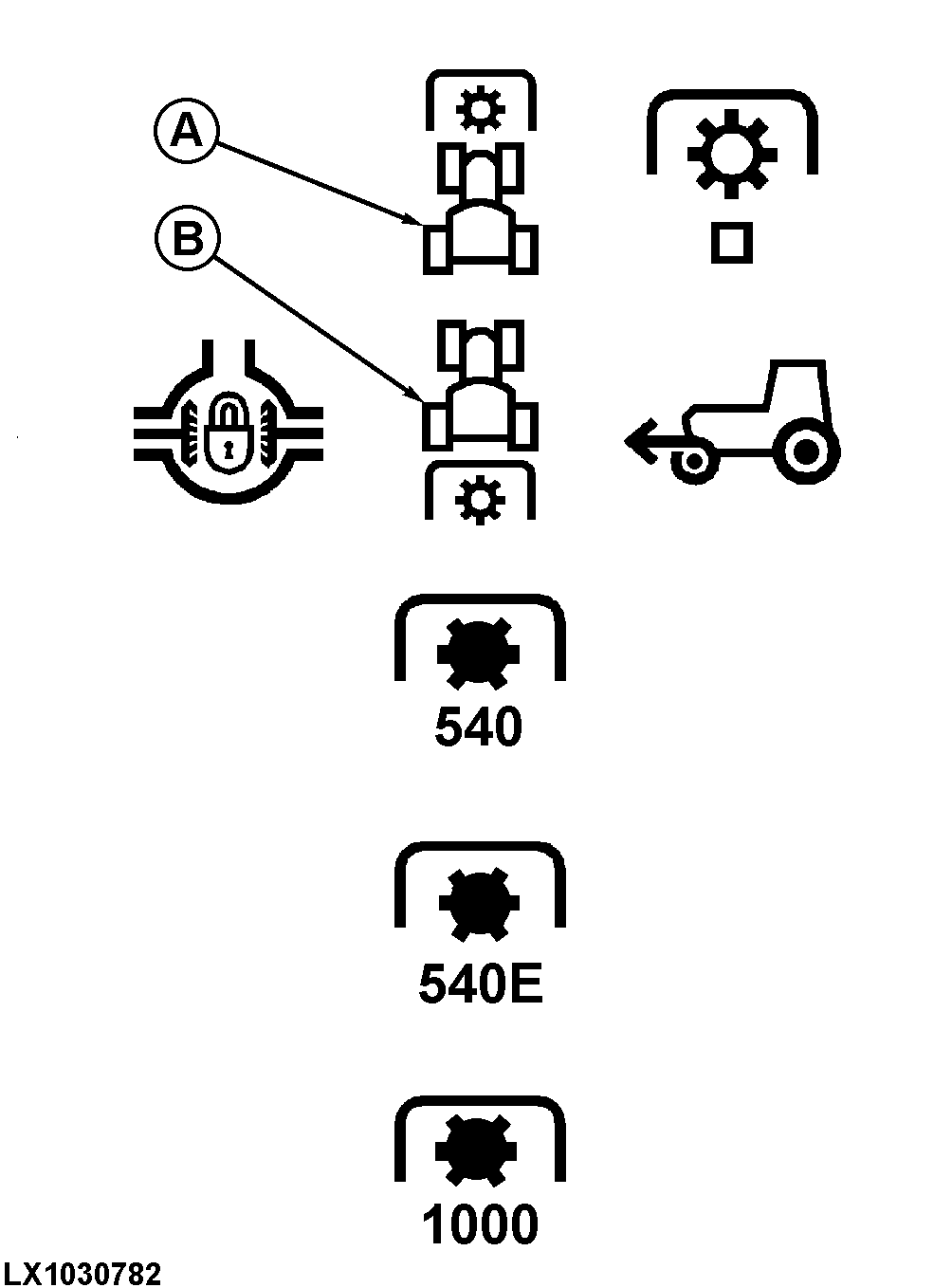

A - Front PTO indicator light

B - Rear PTO indicator light

Always disengage the PTO when not in use.

High-inertia implements do not come to a standstill the moment the PTO control lever is shifted to the disengaged position. Do NOT approach the implement while it is ”coasting down”. Do not work on the implement until it has stopped.

The PTOs can be engaged and disengaged on-the-go and under load. When a PTO is engaged, the relevant light (A) and/or (B) comes on.

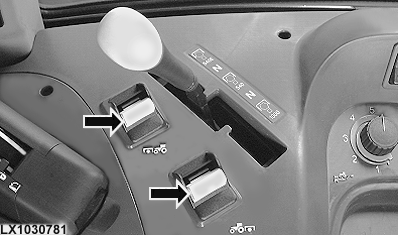

To switch on the PTO, press the lever down and then forward. To switch off the PTO, pull the lever back.

If the engine is shut off while the PTO is running and then restarted, the PTO will not re-engage. Even so, lights (A) and (B) remain on. Switch off PTO and then restart.



LX1035371
LX1035371-UN-06DEC04

On tractors with PowrQuad transmission, the indicator light for the front PTO is located above the switch and the display for the rear PTo is on the dashboard.
