Check Fuel Filter

LX1035412
LX1035412-UN-06DEC04

LX1035423
LX1035423-UN-07DEC04

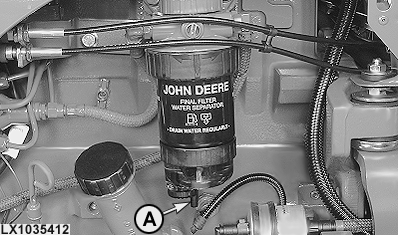

A - Drain screw

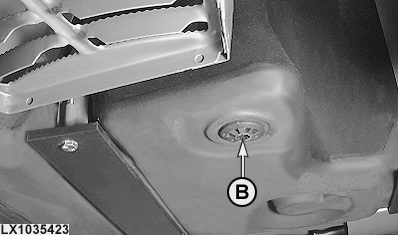

B - Drain plug

If water or sediment deposits have settled in filter, proceed as follows:

  1. Loosen drain screw (A).

  2. Retighten the screw as soon as water and sediment deposits have drained out.

  3. Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 20 seconds.

If water was present in fuel filter, use a 1/2-inch square-section key to loosen drain plug (B) under the fuel tank by one turn. After draining off any water and sediment deposits, retighten drain plug until hand-tight.

OULXE59,00106DD-19-20041205
