Change Oil at Front PTO (If Equipped)

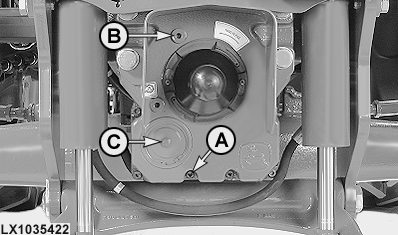

LX1035422-UN-07DEC04

A - Drain screw

B - Filler screw

C - Cover

Remove drain screw (A). Remove filler screw (B) and drain oil into a suitable container.

Remove cover (C), then remove and clean the oil screen. Re-install the oil screen.

Re-install drain screw (A). Add 3.1 liters (0.8 U.S.gal.) of transmission/hydraulic oil to the PTO housing. Re-install filler screw (B).
