Lift Links

LX1031607-UN-18JAN05

LX1035442-UN-13JAN05

LX1035443-UN-13JAN05

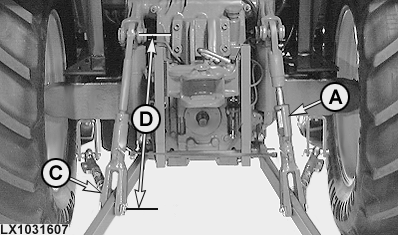

A - Adjusting handle

B - Lock

C - Yoke end

D - Length of links

A greater transport clearance is obtained by shortening the links. Extra working depth is obtained by lengthening the links.

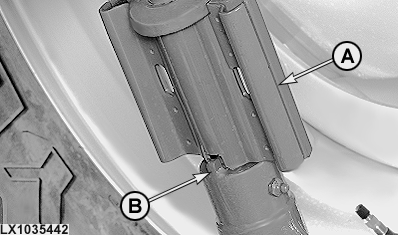

To level implement from side-to-side, adjust one link. Use handle (A) to adjust the link. Do this by lifting handle (A) out of lock (B) and setting the lift link to the length desired. After adjustment is completed, push handle (A) down and secure it with lock (B).

To adjust left-hand lift link: Remove the lift link from the draft link and screw yoke end (C) in or out.

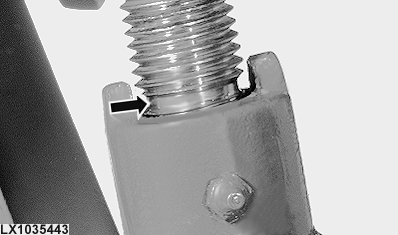

Length (D) of links must be kept within the limits stated. A groove in the thread of each lift link indicates the maximum permitted setting. The threads must not be unscrewed any further out of the receiver.

• Minimum length 690 mm (29.9 in.)
• Maximum length 825 mm (32.5 in.)

The lift link dimensions quoted above are with lift links locked in draft links (no vertical float).

A short lift link provides a short lifting height and maximum lifting force.

A long lift link provides a long lifting height and less lifting force.
