Removing 3-Point Hitch (5020 and 5025 Series Tractor)

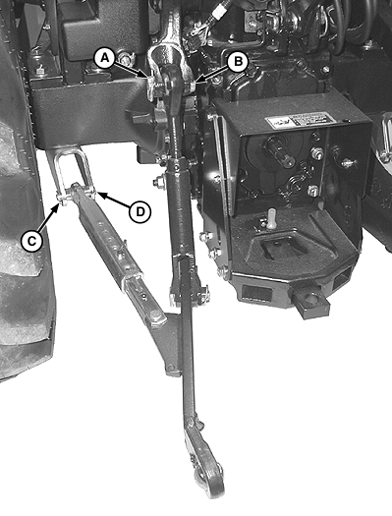

1. Remove locking pin (A), pin (B), cotter pin (C) and sway bar pin (D).

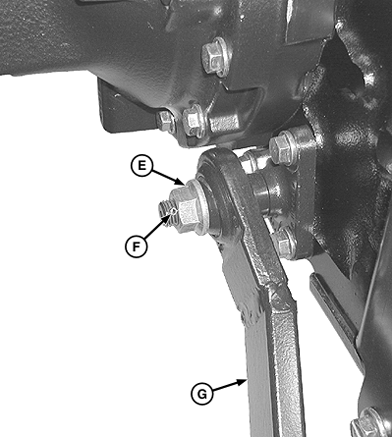

2. Remove roll pin (F), nut (E) and draft link (G).

3. Repeat Steps 1 and 2 on other side of 3-point hitch.


A-Locking Pin
B-Pin
C-Cotter Pin
D-Sway Bar Pin
E-Nut
F-Roll Pin
G-Draft Link

LV9337

Left Side Draft Link

LV9338

OUO1023,000002F -19-05OCT04-1/2

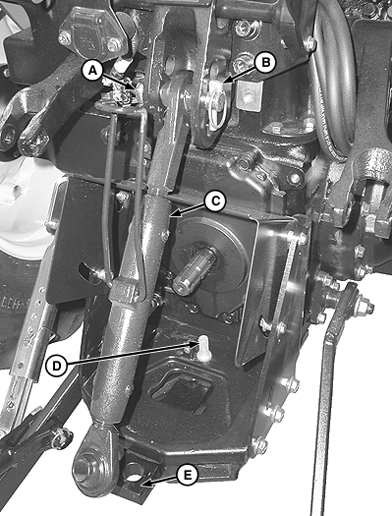

4. Remove locking pin (B), center link pin (A) and center link (C).

5. Remove drawbar retaining pin (D) and drawbar (E).


A-Center Link Pin
B-Locking Pin
C-Center Link
D-Drawbar Retaining Pin
E-Drawbar
