Connecting Hydraulic Hoses-5025

IMPORTANT: To prevent machine damage, ensure all hydraulic hoses are routed beneath the rockshaft lift arms.

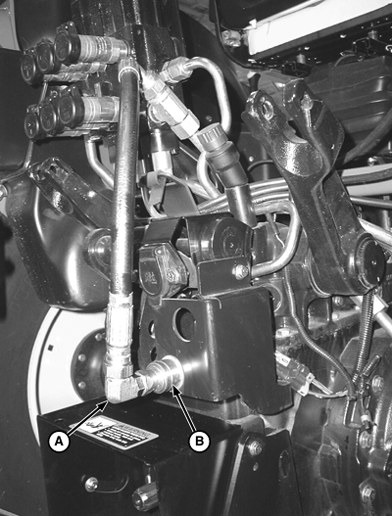

1. Disconnect jumper hose (A) from power beyond coupler (B).

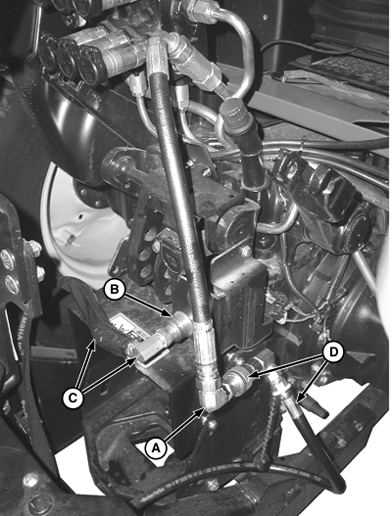

2. Connect backhoe pressure hose (C) to power beyond coupler (B).

3. Connect backhoe return hose (D) to jumper hose (A).

A-Jumper Hose
B-Power Beyond Coupler
C-Backhoe Pressure Hose
D-Backhoe Return Hose

OUO1023,000003B -19-11OCT04-1/1
