Attaching and Detaching Backhoe

CAUTION: TO AVOID INJURY, DO NOT STAND BETWEEN TRACTOR AND BACKHOE WHEN ATTACHING OR DETACHING. BE EXTREMELY CAREFUL WHEN OPERATING CONTROLS FROM THE GROUND.

STAND CLEAR OF STABILIZER MOVEMENT

ENSURE SWING LOCK PIN IS INSTALLED.

TO AVOID PATH OF STABILIZERS, STAND BESIDE RIGHT REAR TIRE OF TRACTOR, FACE TRACTOR, AND PUT LEFT HAND ON CONTROL LEVERS.

TO AVOID INJURY, ENSURE BACKHOE HYDRAULIC HOSES ARE NOT PINCHED OR DAMAGED DURING INSTALLATION OR REMOVAL.

TO PREVENT MACHINE DAMAGE, ENSURE BACKHOE OPERATOR SEAT IS IN THE VERTICAL POSITION.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly and replace if necessary.

2. Raise or lower stabilizers (A) as necessary to position subframe crossbar (C) in line with rear hanger hooks (D). (See Operating Machine chapter for information on backhoe operation.)

NOTE: Front hanger end of subframe must be below level of front hanger on tractor before tractor is positioned.

3. Back up tractor until subframe crossbar seats firmly into rear hanger hooks.

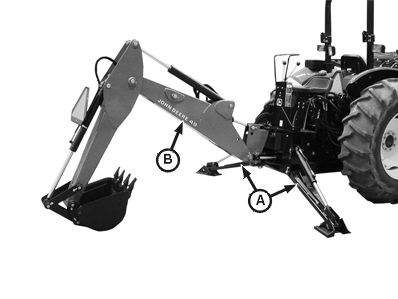

A-Stabilizer (2 used)
B-Boom

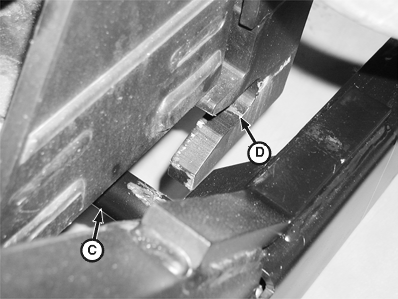

C-Subframe Crossbar
D-Rear Hanger Hook (2 used)

OUO1043,0000202 -19-20OCT04-1/7

OUO1043,0000202 -19-20OCT04-2/7

6. Stop engine.

7. Install tapered pins in front hanger and secure with hitch pins.

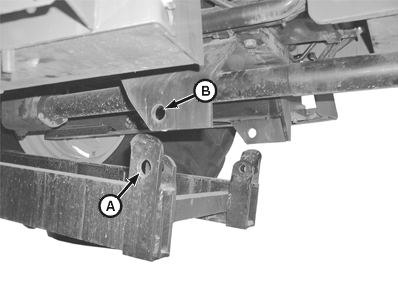

A-Subframe Front Hanger Hole (2 used)
B-Front Hanger Hole (2 used)

OUO1043,0000202 -19-20OCT04-3/7

9. Start engine and run at slow idle.

10. From the operator's seat, bleed the system by doing the following:

• Raise and lower stabilizers.
• Raise and lower boom.
• Extend and retract dipperstick.
• Curl and dump bucket.
• Swing boom from side to side.

11. Install swing lock pin and boom lock pin.

12. Stop engine.

IMPORTANT: Check tractor hydraulic fluid level. Add fluid if necessary.

13. Check tractor hydraulic fluid level. Add fluid if necessary. See tractor operator's manual.

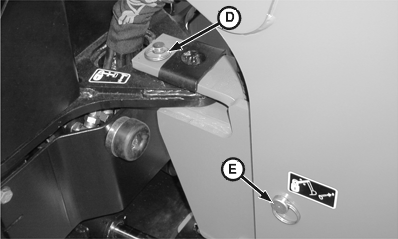

D-Swing Lock Pin
E-Boom Lock Pin

OUO1043,0000202 -19-20OCT04-4/7

CAUTION: TO AVOID INJURY, DO NOT STAND BETWEEN TRACTOR AND BACKHOE WHEN ATTACHING OR DETACHING. BE EXTREMELY CAREFUL WHEN OPERATING CONTROLS FROM THE GROUND.

STAND CLEAR OF STABILIZER MOVEMENT

ENSURE SWING LOCK PIN IS INSTALLED.

TO AVOID INJURY, ENSURE BACKHOE HYDRAULIC HOSES ARE NOT PINCHED OR DAMAGED DURING INSTALLATION OR REMOVAL. CHECK HOSES REGULARLY. REPLACE DAMAGED HOSES.

TO AVOID PATH OF STABILIZERS, STAND BESIDE RIGHT REAR TIRE OF TRACTOR, FACE TRACTOR, AND PUT LEFT HAND ON CONTROL LEVERS.

TO PREVENT MACHINE DAMAGE, ENSURE BACKHOE OPERATOR SEAT IS IN THE VERTICAL POSITION.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly and replace if necessary.

1. Park tractor safely on level ground. Place tractor in PARK. Run engine at slow idle.

2. Lower stabilizers (A) to the ground.

3. Install swing lock pin (D).

4. Remove boom lock pin (E), if boom lock pin is installed.

5. Extend dipperstick (C) and lower boom (B). Position bucket on ground so that straight edge of bucket is parallel to ground.

6. Stop engine.

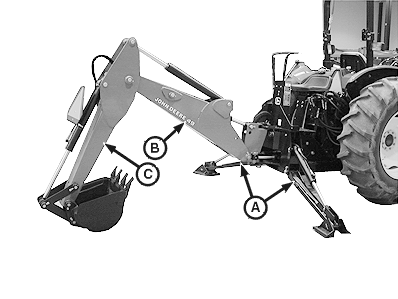

A-Stabilizer (2 used)
B-Boom
C-Dipperstick
D-Swing Lock Pin
E-Boom Lock Pin

OUO1043,0000202 -19-20OCT04-5/7

8. Start engine and run at slow idle.

9. Lower boom and stabilizers alternately, pivoting subframe on rear hanger, to lower front hanger end of subframe to the ground.

10. Lower boom or stabilizers slightly to free rear hanger of subframe weight.

OUO1043,0000202 -19-20OCT04-6/7

12. Lower backhoe until main frame is resting on ground.

13. Stop engine. Put tractor in PARK.

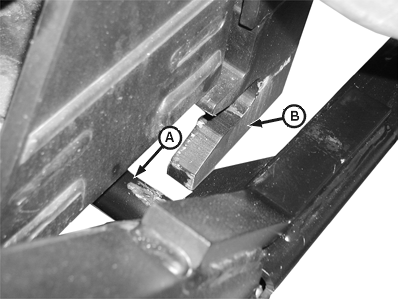

A-Subframe Crossbar
B-Rear Hanger Hook (2 used)

OUO1043,0000202 -19-20OCT04-7/7
