Disconnecting Hydraulic Hoses-5000, 5010 and 5020

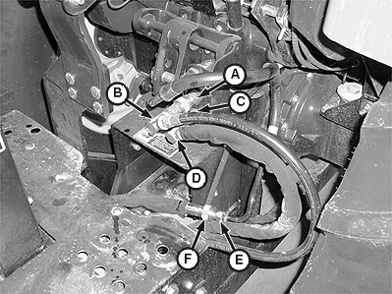

2. Disconnect 1220 mm (48 in.) backhoe sump return hose female quick-disconnect coupler (B) with yellow ring from tractor sump return male quick-disconnect coupler (A) with yellow ring.

3. Disconnect 1220 mm (48 in.) backhoe pressure hose male quick-disconnect coupler (D) from tractor pressure female quick-disconnect coupler (C).

4. Disconnect 610 mm (24 in.) backhoe pressure return hose female quick-disconnect coupler (F) from tractor pressure return male quick-disconnect coupler (E) to .

IMPORTANT: To prevent tractor hydraulic system damage, pressure return jumper hose quick-disconnect coupler MUST be connected to pressure quick-disconnect coupler, when backhoe is detached.

5. Connect tractor pressure return jumper hose quick-disconnect coupler (E) to tractor pressure quick-disconnect coupler (C).

6. Connect backhoe pressure hose male quick-disconnect coupler (D) to backhoe pressure return hose female quick-disconnect coupler (F).

7. Install dust caps and plugs on remaining quick-disconnect couplers.

A-Tractor Sump Return Male Quick-Disconnect Coupler
B-Backhoe Sump Return Hose Female Quick-Disconnect Coupler
C-Tractor Pressure Female Quick-Disconnect Coupler
D-Backhoe Pressure Hose Male Quick-Disconnect Coupler
E-Tractor Pressure Return Jumper Hose Quick-Disconnect Coupler
F-Backhoe Pressure Return Hose Quick-Disconnect Coupler
