Operate Key Switch

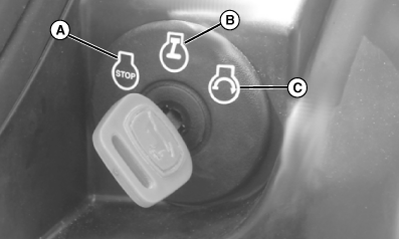

LVAL38261
LVAL38261-UN-21AUG12

A - Off Position

B - Run Position

C - Start Position

Position (A)—Switched power is off and engine is off.

Position (B)—The oil pressure light and battery charge light illuminates on initial activation. If there is a need for engine pre-heating, the glow plugs are activated .

Position (C)—Start position. Release the key after the engine has started to return to the run position (B). Engine oil pressure and battery charge lights turn off.
