Adjusting Tilt Steering Wheel (1025R)

1. CAUTION: Avoid Injury! Do not attempt to adjust the steering wheel while the machine is moving. The operator can lose control of the machine.

   • Stop the machine before adjusting the steering wheel.
   • Lock the steering wheel in position before driving the machine.



   Stop machine.

2.

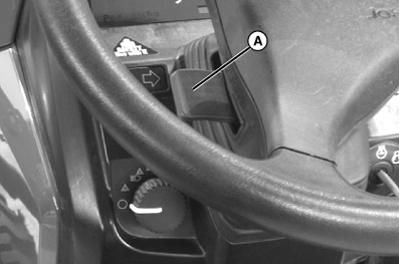

   LVAL38258-UN-21AUG12

   A - Tilt Steering Control Lever

   Pull tilt steering control lever (A) up to release steering wheel.

---




3. Adjust steering wheel to desired position.

4. Release tilt steering control lever to lock steering wheel in position.
