Using Mower Height Control Knob
LVAL38259-UN-21AUG12

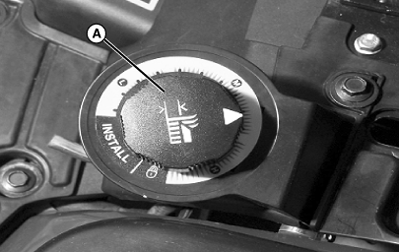

A - Mower Height Control Knob
Use mower height control knob (A) to adjust mower cutting height, and lock mower lift kit rear draft arms in raised or transport lock position. See your mower deck operator’s manual for instructions.IMPORTANT: Avoid Damage! To avoid machine damage when operating without a mower, fully raise the mower lift kit rear draft arms, and turn mower height control knob clockwise to the transport position to lock the arms in raised position.
|
KN52281,1003EA8-19-20120822 |
