Using Turn Signal Switch

1. NOTE: The turn signal switch will operate only when the ignition key switch is in the ON position.

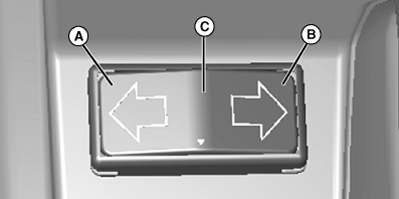

   LVAL38263-UN-21AUG12

   A - Left Side of Switch

   B - Right Side of Switch

   C - Centered Position of Switch

   Depress left side of switch (A) to operate the left turn signal light.

---




2. Depress right side of switch (B) to operate the right turn signal light.

3. Move switch to the centered position (C) to turn lights off.
