Using Park Brake

NOTE: Label on dash illustrates park brake operation.

Locking Park Brake:

1. CAUTION: Avoid Injury! Always lock park brake and move transmission range shift lever to a position other than N (neutral) before leaving machine unattended. Transmissions will not prevent machine motion without the park brake locked.

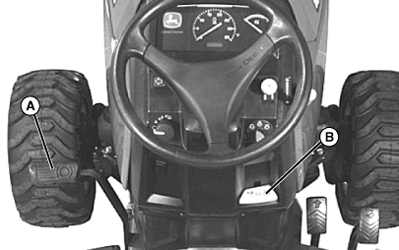

   LVAL38266-UN-21AUG12

   A - Brake Pedal

   B - Park Brake Lock

   Press down completely on brake pedal (A) with foot.

---




2. Lift park brake lock (B) completely up to the locked position.

3. Remove foot from brake pedal. Pedal should now stay down in the locked position and park brake light should be illuminated.

Unlocking Park Brake:

1. Press down completely on brake pedal (A) with foot.

2. Push park brake lock (B) completely down to the unlocked position.

3. Remove foot from brake pedal. Pedal should now be released from the locked position and park brake light should be off.
