Using Rear Hitch

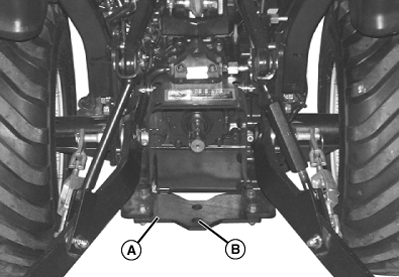

LVAL38280-UN-21AUG12

A - Rear Hitch Plate

B - Single Fixed Mounting Position

CAUTION: Avoid Injury! Hitch towed loads only to the rear hitch plate to avoid rearward upset. Do not use a safety chain for towing loads.

Maximum Hitch Loads

Certain heavy equipment such as a loaded single-axle trailer can place excessive strain on the hitch. Strain is greatly increased by speed and rough ground. Do not exceed 255 kg (562 lb) maximum static vertical load on the rear hitch at position (B).
