Using Optional iMatch™ Quick-Attach Hitch System

The optional quick-attach hitch fits all Category I implements designed to the ASAE Cat I standard for quick-attach hitches.

Installing Hitch

1.

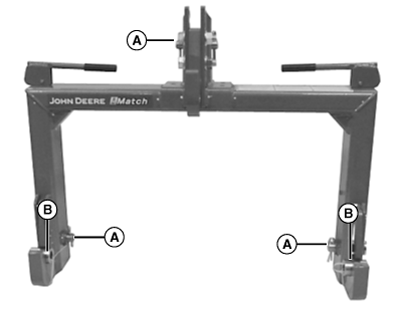

   LVAL38290-UN-21AUG12

   A - Drilled Pins (3 used)

   B - Bushing (2 used)

   Remove three drilled pins (A) and two bushings (B) from quick-attach hitch.

---




2. Use machine rockshaft control lever to fully lower 3-point hitch draft links.

3. Park machine safely. (See Parking Safely in Safety Section.)

4.

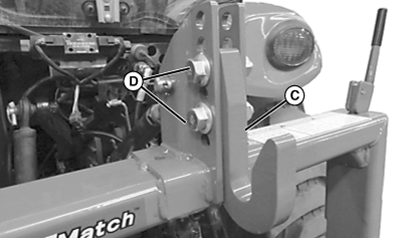

   LVAL38291-UN-21AUG12

   Previous version of the iMatch Hitch is not equipped with the adjustable center link.

   C - Center Link Hook

   D - Nuts And Bolts

   Center link hook (C) is set from factory at standard height to accomodate most implements. Adjust center link hook, if required.
   • Remove nuts and bolts (D).
   • Raise or lower center link hook as required.
   • Install nuts and bolts. Torque bolts to specification before use of iMatch assembly.

     Item	Measurement	Specification
     iMatch Bolts	Torque	245-318 N·m




---




5. Position quick-attach hitch near draft links and adjust 3-point hitch sway links to align draft links with quick-attach hitch.

6. Install quick-attach hitch on draft links using drilled pins.

7. Install 3-point hitch center link on quick-attach hitch using center link quick-lock pin and drilled pin.

Connecting Implement

1. Install two bushings included with quick-attach hitch on drilled pins in implement draft link lift brackets.

2.

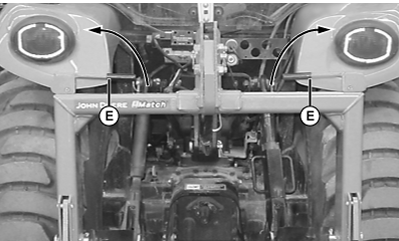

   LVAL38292-UN-21AUG12

   E - Levers

   Move levers (E) on quick-attach hitch to unlocked position.

---




3. Back machine into position and align quick-attach hitch with implement lift brackets.

4. Use rockshaft control lever to position quick-attach hitch under lift brackets and lift implement from ground.

5.

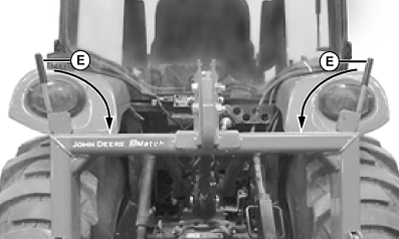

   LVAL38293-UN-21AUG12

   E - Levers

   Fully raise implement. Move levers (E) on quick-attach hitch to locked position.

---
