Checking Engine Oil Level

IMPORTANT: Avoid damage! Failure to check the oil level regularly could lead to serious engine problems if oil level is low:

  • Check oil level before operating.
  • Check oil level when the engine is cold and not running.
  • Keep level between the Full and the Add marks.
  • Shut off engine before adding oil.

NOTE: Check oil twice a day if you run engine over 4 hours in a day.

Make sure engine is cold when checking engine oil level.

  1. Park the machine safely. (See Parking Safely in Safety Section.)

  2. IMPORTANT: Avoid damage! Dirt and contamination can enter engine when checking oil level. Clean area around dipstick before loosening or removing.

    LVAL38307
    LVAL38307-UN-21AUG12

    1023E shown. 1025R similar.

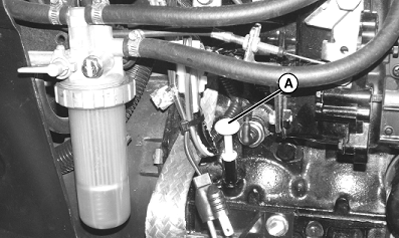

    A - Dipstick

    Remove dipstick (A), located at the right side of the engine. Wipe with a clean cloth.


  3. Install dipstick.

  4. Remove dipstick.

  5. LVAL38308
    LVAL38308-UN-21AUG12

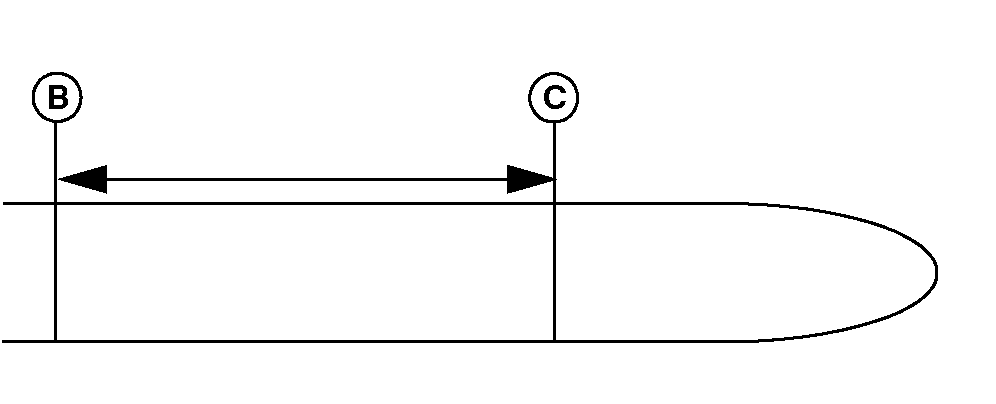

    B - Oil Level

    C - Oil Level

    Check oil level on dipstick. Oil level should be between levels (B) and (C) on dipstick.


  6. If oil level is low:

    1. Raise hood.

    2. Remove right side panel.


    3. LVAL38309
      LVAL38309-UN-21AUG12

      1023E shown. 1025R similar.

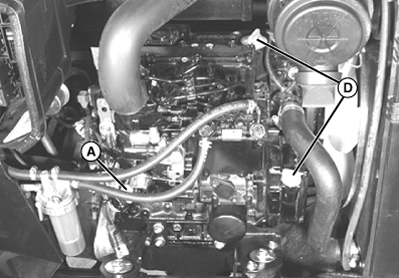

      A - Dipstick

      D - Oil Fill Cap

      Remove either oil fill cap (D).

    4. Add recommended engine oil until level is within operating range on dipstick. Do not overfill.

    5. Install dipstick.

  7. If oil is above top hole mark on the dipstick, drain to proper level.

  8. Install right side panel if removed.

  9. Lower hood if opened.
