Checking Air Filter Intake Hoses and Clamps

1. Park machine safely. (See Parking Safely in Safety Section.)

2. Raise hood.

3. NOTE: Visually inspect hose for cracks and wear. Squeeze hose to check for deterioration. Hose should not be hard and brittle, nor soft or swollen.

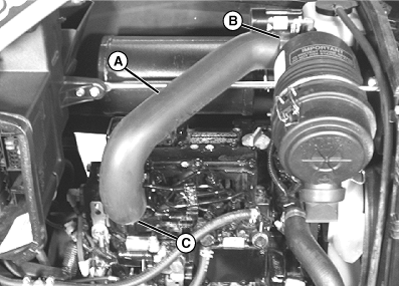

   LVAL38317-UN-21AUG12

   A - Hose

   B - Upper Clamp

   C - Lower Clamp

   Check air intake hose (A).

---




4. Tighten upper (B) and lower (C) clamps if necessary.

5. Lower hood.
